Automotive Test Manager
Based on the powerful PULSE platform, Automotive Test Manager Type 7796 (ATM) is a software application specifically designed for performing common noise and vibration measurements related to NVH troubleshooting and benchmark testing.
The ATM system focuses on ease-of-use and high performance. This, when combined with the state-of-the-art PULSE IDAe hardware, make for an extremely powerful, compact, and easy to use system, suitable for both in-car and test cell applications.
Uses
- NVH testing for the non-expert user
- Easy benchmark testing
- Simple execution of common NVH tests including:
– Run-up/down order tracking
– Constant speed order tracking
– Narrow-band analysis
– Mobility testing
– Time signal analysis and filtering
- Versatile single-system solution covering all aspects of test and post-measurement activities
- Secured measurement procedure for fully traceable measurement results
- Easy in-vehicle measurements
Features
- Step-by-step measurement guidance
- Multi-level user setup options
- Simplified workflow
- On-line test status
- Data-centric architecture
- Multi-language user interface
- Sharing of results via a central database
- Automatic labelling of results with user-selectable meta (header) data
- Powered by PULSE (real-time multi-analyzer)
- Scalable (channel count, analysis types, performance)
CAN bus support. Measure CAN bus signals together with dynamic channels in ATM.
Support of Req-X . Real-time frequency response correction of transducers to compensate for non-linear responses at elevated frequencies or due to method of mounting
PULSE In-vehicle box Type 3643. Enjoy more convenience using the PULSE In-vehicle box Type 3643 for transporting and measuring with ATM

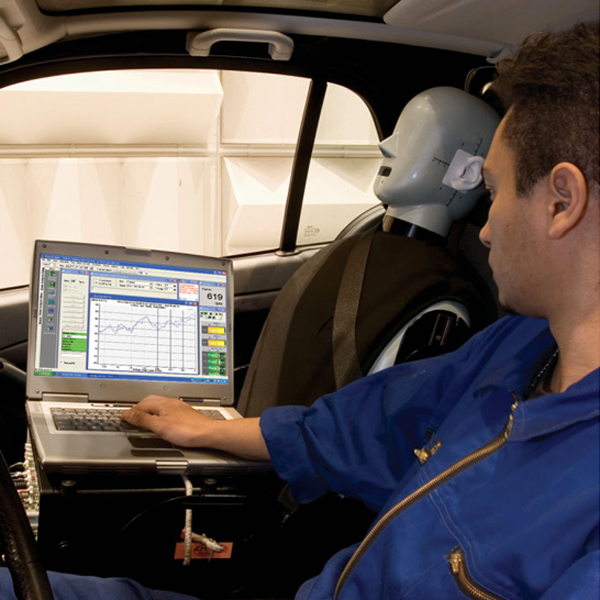

In-car measurements. Safer and easier in-car measurements using the ZH-0630 PULSE Remote Control. The ruggedized 3 button remote control has its own screen to show rpm and system status
