2673 -

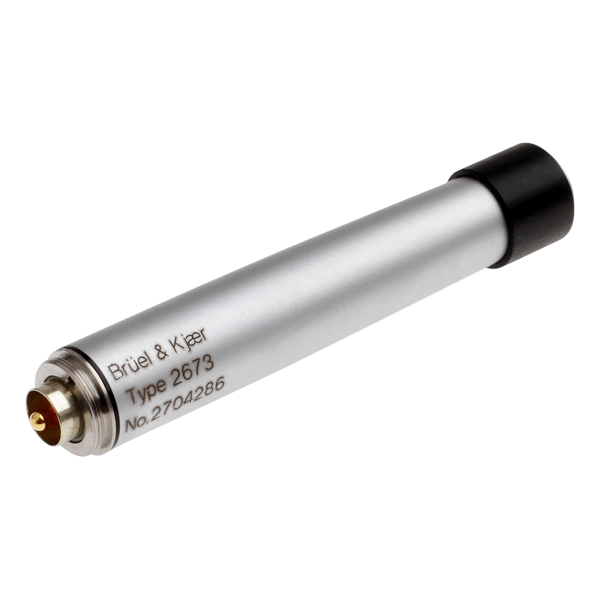

½-inch microphone preamplifier with insert voltage facility
Designed to allow calibration of ½" and 1" condenser microphones by the insertvoltage technique, either in conjunction with the reciprocity method or with a known sound source.
Uses
- Insert voltage calibration of condenser microphones for open-circuit voltage determination
- Calibration of condenser microphones with respect to reciprocity calibration methods
- General sound measurements in connection with Brüel & Kjær condenser microphones
Features
- Full electromagnetic compatibility (EMC)
- Detachable cable for easy installation
- Compact LEMO connector for connection to instrument input socket (adaptor for Brüel & Kjær connectors provided)
- Wide dynamic range
- Very low attenuation
Type 2673 consists of a high impedance input stage and an output stage giving a low output impedance for driving long cables and the Driven Guard surrounding the input stage. The thread which accepts the microphone cartridge is isolated from the preamplifier housing to allow an insert-voltage signal to be applied in series with the microphone for determination of the microphone’s open-circuit sensitivity. ½-inch Microphone Preamplifier Type 2673 is very similar in design and performance to another Falcon Range product – Type 2669. The main difference is that Type 2673 includes an insert voltage calibration facility.
The Insert Calibration facility is used for reciprocity and insert voltage calibration of condenser microphones in accordance with IEC 1094 – 1: 1992 and ANSI S1.10.
