2250 & 2270 Based Building Acoustics System

Building Acoustics Defined

Building Acoustics is the assessment of sound insulation in buildings and building elements. It is important for the well-being of people in their homes, workplace or public venues, and minimum standards are set in the building regulations of each country.

The assessment is based on measured 1/3 octave or 1/1 octave spectra within the 50 - 5000 Hz range. Measurements are carried out in real time (all bands simultaneously).

Tasks

There are three kinds of BA measurement (Tasks), depending on the purpose:

Airborne sound insulation is the sound insulation from one room (the source room) to another (the receiving room). It is calculated from the Leq spectrum for the average source room level L1, average receiving room level L2, receiving room background noise level B2 and average reverberation time T2.
Facade sound insulation is airborne sound insulation with the "source room" being the space outside a building, and the receiving room being inside the building
Impact Sound Level is the sound level in the receiving room from a standardized tapping machine in the source room.

Building acoustics diagram

Building Acoustics measurement with Type 2250 & Type 2270

Application software Type BZ-7228 is available for Hand-held Analyzers Type 2250 and Type 2270 . It provides the flexibility, ease of use and confidence in your results that field measurements require in building acoustics.

Dual Channel Measurement with 2270 & BZ 7229

Application software Type BZ 7229 is the dual channel measurement application for the 2270 hand-held analyzer and offers a time saving benefit in being able to measure in the source and receiving rooms simultaneously for airborne tests or outside and inside for facade measurements.

Features

Complete hand-held building acoustics analyzer
Measures source and receiving room level spectra (Equalisation of sound source spectra)
Measures reverberation time spectra (Impulse and Interrupted noise method)
Measurement position management
Calculates final results on the spot (ISO plus another 12 national standards)
Measurement quality indicators
Colour touch screen user interface
Sound recording, voice commentary and integrated camera (Type 2270 only) to document test environment
Single channel measurements (Type 2250 & 2270)
Dual channel measurements (Type 2270 only)
Analysis and report generation in Type 7830 Qualifier, PC software

PULSE Reflex Building Acoustics

Having completed your airborne, façade or impact measurements with a Type 2250 or 2270, PULSE Reflex can be used to complete the work-flow process in an intuitive PC environment, offering versatile data analysis and ‘fast-track’ generation of the complete measurement report.

Generate reports in the format you need quickly and easily
The stream-lined ‘work flow’ concept allows your results to be published in a Word* document, Excel* spreadsheet or a PowerPoint* presentation, all of which are integrated into the PULSE Reflex environment and updated instantly during the analysis process.
Data Integrity checks - increased confidence in your assessment
PULSE Reflex performs sound insulation data integrity checks that let you know if room measurement quality is below the minimum standard required by the relevant building acoustics standard.
Combine, compare, conclude

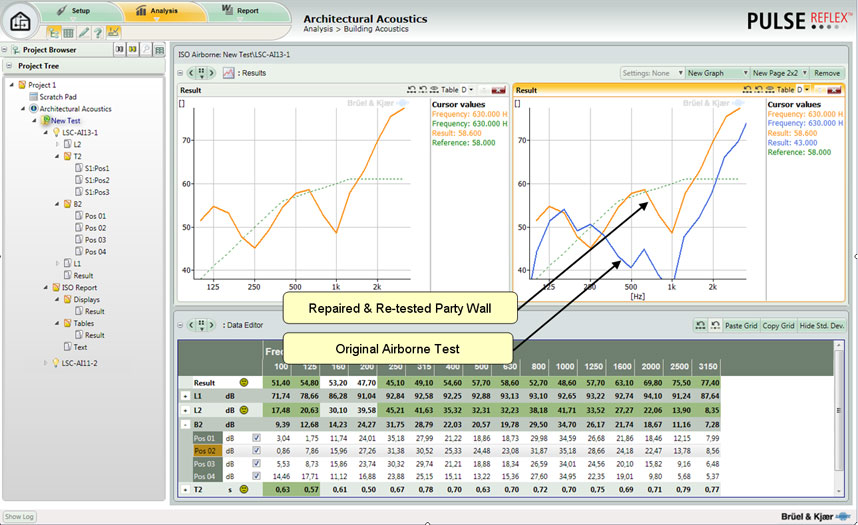

Determining the before-and-after performance of a rebuilt or repaired party wall is intuitively simple. Combine, compare and conclude performance measurements with confidence and ease.
Gain an unrivalled insight into the factors influencing your building acoustic results
Edit measurement data in the interactive display to instantly reveal which factors are contributing most to your sound insulation results.
