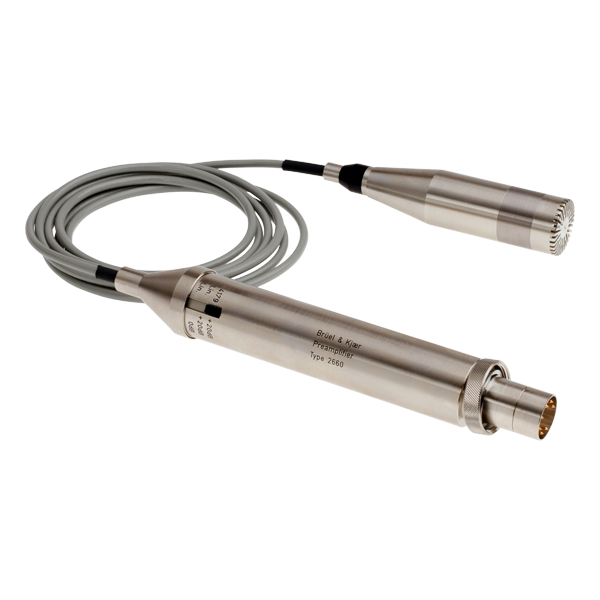

TYPE 2660

1-inch microphone preamplifier, very low noise, 20 dB gain, for Type 4179

Designed for very-low-level sound measurements.

Condenser Microphone Type 4179 and Microphone Preamplifier Type 2660 constitute a unique system for measuring sound pressures well below the nominal 0dB re 20 μPa reference level for acoustic measurements. The 1/3-octave bandwidth inherent noise floor of the complete system at 1 kHz is typically -16dB.

USE SCENARIOS

Hearing research
Monitoring of very low background noise levels
Sound power measurement of very-low-level sources
Distanced measurement of very-low-level compressor, fan or motor noise where close measurements

FEATURES

Very low inherent noise floor of -2,5dB (A) . (-7 to -16dB in the '/s-octave bands 20 Hz to 20 kHz)
High sensitivity: 1 V/Pa
Frequency response in accordance with IEC 651, Type 1

Related services

Specifications

Diameter: 1/2 and 1/1
Optimised for: Low-noise
Connector at instrument/cable: B&K, 7-pin
Polarization voltage support: Yes
Supply voltage: ± 6 and ± 60
Max output voltage (peak): 45
Max output current (peak): 1.5
Frequency range: 20 to 200000
Attenuation: < 0.06
Noise A-weighted, typical: 0.8
Noise 22,4 Hz to 300 kHz, typical: 5
Input impedance: 36||0.3
