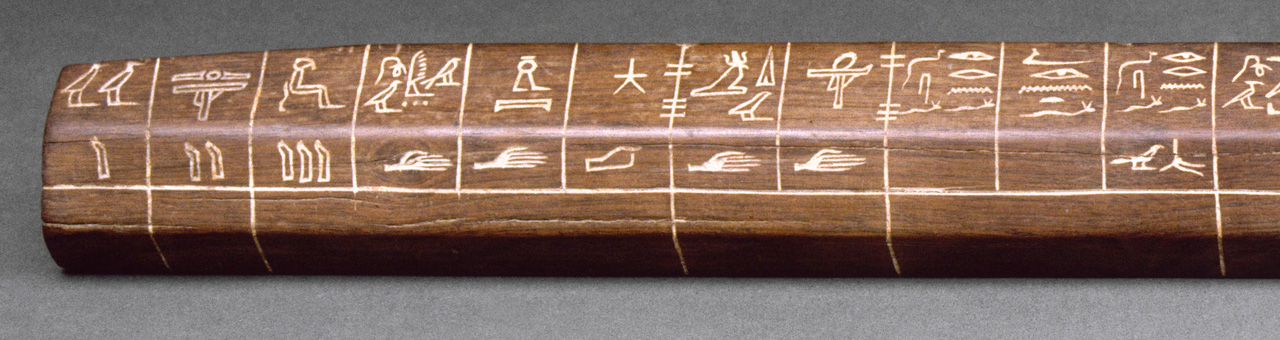

Egyptian cubit

The Egyptian Cubit: The Birth of Calibration

One of the earliest known units to measure length is the Egyptian cubit, which dates from the 3rd millennium BC.

Top image - Copyright © RMN-Grand Palais (musée du Louvre) / Hervé Lewandowski

What is a Cubit

A cubit is an ancient measurement of lenght. While the common cubit was the length of the forearm from the elbow to the tip of the middle finger – usually around 45.7 cm, the "royal cubit" was slightly longer: A common cubit plus the width of the palm of the Pharaoh ruling at the time.

The single royal cubit master (primary standard) was a rod carved from a block of black granite. Surviving cubit rods are between 52.2 and 52.9 cm in length. Workers were then supplied with copies – cubit sticks made of wood or granite. The royal architect or foreman of each construction site was responsible for maintaining the accuracy of these.

At every full moon, the cubit sticks had to be brought to the royal cubit master and compared to it. Failure to do so was punishable by death. With this standardization and uniformity of length, they achieved amazing accuracy.

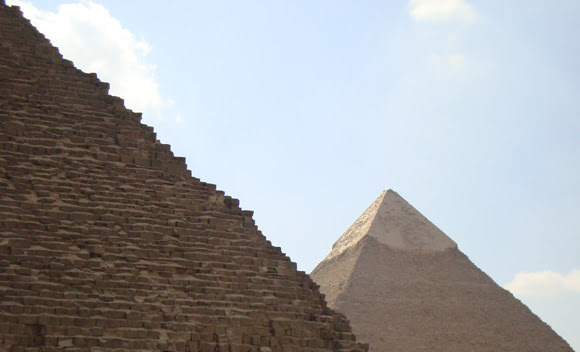

As an example, the Great Pyramid of Giza is constructed with sides of 440 cubits (230.364 meters). Using cubit sticks, the builders were within 11.4 cm – an accuracy better than 0.05%.

Instrument CalibrationLEARN MORE

Royal cubit

The egyptian cubit shaped the first, basic ideas of modern calibration over 4000 years ago, and brought with it a common unit of measurement, traceability, a hierarchy of standards with regular re-calibration intervals.
