B&K Transducers / Sensors

트랜스듀서

트랜스듀서의 품질은 세심한 테스트와 품질 관리로 인한 브뤼엘앤드케아만의 독창적인 경험과 지식의 결과입니다.

What is a transducer

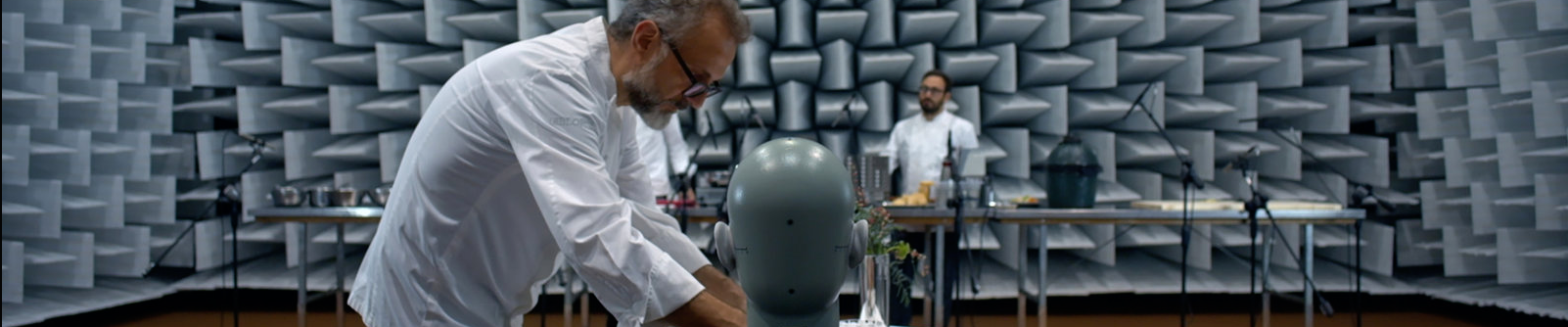

What is a Transducer?


SEVEN
KEY FACTS & FIGURES


ONE

Transducers are a core part of Brüel & Kjær’s business – they always have been, for more than 60 years.




TWO

Brüel & Kjær continually invests in state-of-the-art transducer production and test equipment




THREE

Each transducer is subjected to between five and ten test functions during its manufacture to ensure  accurate transducer sensitivity





FOUR

The parameters of prototypes are thoroughly tested and verified against the FEM model and the requirement specification




FIVE

After the production process is completed, the key parameters of every accelerometer are 100% tested to check that its performance is within specification




SIX

Many companies produce transducers but it is our attention to testing and quality control at all stages of the production process that makes the difference




SEVEN

Brüel & Kjær is accredited to ISO 9001 and EN 9100

WHAT IS A TRANSDUCER

A piezoelectric transducer is a device that converts electrical signals (a form of energy) from one form to another in such a manner that the desired characteristics of the input energy appear at the output signal.

Transducers are a vital first link in your measurement chain.

Transducer sensitivity can be stated in electrical quantity/physical parameter (for example, Picocoulomb/m/s
2) or physical parameter/electrical quantity (such as Pascals/Volt).


TRANSDUCER VS SENSOR

The terms transducer and sensor are often used interchangeably – but in fact, they can be very different devices and possess different characteristics.

While both a sensor and a transducer in many cases respond to a physical phenomenon (for example, temperature, pressure, vibration) and provide a signal that can be measured, typically an electrical signal, a transducer can take an electrical signal and convert it to a physical signal (for example, a speaker).

  • sensor is a more generic term and may be used to describe an entire ‘system’ for documenting a physical phenomenon (like a thermometer), or just the sensing part of a bigger system ( like photosensors in a camera).
  • transducer, however, is more narrowly defined as a device, which responds to changes in a physical phenomenon and converts it into a measurable electrical phenomenon, or the inverse.

TYPES OF TRANSDUCERS

There are many transducers types and equally many measurement applications.

Whether you measure electrical signals, high-frequency acceleration (HFA), or sound waves, transducers stand on the front line providing you with the full scale of raw data needed to make informed, critical decisions. As an example, our sensors and airborne amplifiers are being used to provide critical flight data for a rocket's onboard telemetry. In situations like these, it is absolutely vital that the data is trustworthy.

The measurement applications range from the development of quieter, safer cars, to ensure that an aircraft and its engines are totally reliable and environmentally friendly and that household appliances have low levels of noise and vibration.

The Brüel & Kjær types range from industry-leading measurement microphones, and hydrophones, to sound sources (or loudspeakers and amplifiers)designed for acoustic measurements, to force transducers, impact hammers, and our extensive range of accelerometers for vibration measurements.




HBM Test and Measurement, part of HBK, delivers market-leading sensors
such as; strain gauge sensors, optical sensors, and pressure transducers
for a wide range of measurement applications.

LEARN MORE
HBM SENSORS TECHNOLOGY



DEVELOPMENT, PRODUCTION, AND TESTING

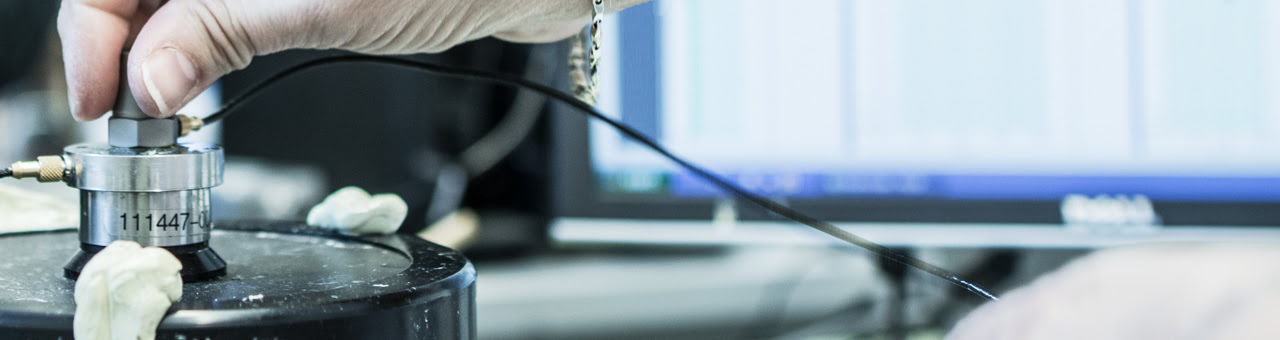

service-contracts-hero

Brüel & Kjær has invented many of the technologies used in most today’s accelerometers and microphones. It is our firm conviction that technology has no limits. If we can imagine it, we can develop it.

In production, every Brüel & Kjær transducer is thoroughly tested to ensure that its performance is within the specified parameters. All components, whether from sub-suppliers or manufactured within Brüel & Kjær, are subjected to rigorous inspection. The inspection takes the form of physical and dimensional control systems to ensure conformity to specifications and quality, as reflected in our status as an ISO 9001 and EN 9100 certified company.

With ultrasound, components are inspected and then cleaned in a demineralized water and soap solution. The parts are then dried using compressed air and placed in an oven to remove any traces of humidity. A unique process is then applied to clean the electronic components. On average, we conduct between five and ten separate test procedures together with individual calibration and validation before shipment.

Brüel & Kjær measurement devices are produced with the utmost care and tested in extremely harsh environments. You can follow the process in this video showing the making of Type 4966 Free-Field Microphone:



TRANSDUCER SENSITIVITY AND ACCURACY

We perform an individual calibration before shipping. Our unique status as the primary Danish standards lab reduces our traceability steps and uncertainty in measurement sensitivity.

The information we gather when testing and calibrating is detailed in our product datasheets, providing information on device sensitivity to external inputs together with any additional specifications.

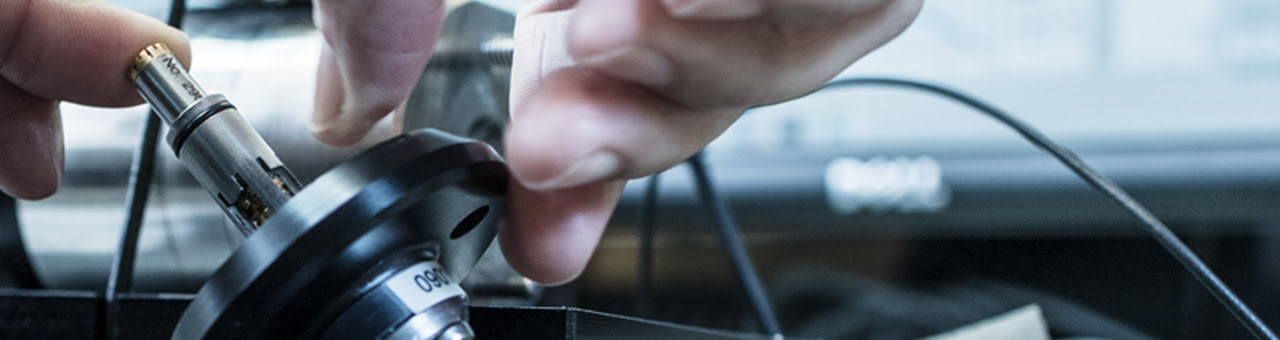

Transducer Calibration / Sensor Calibration


Calibration is performed in our own laboratory using a technique based on FFT analysis.
This provides the needed resolution to detect certain types of problems
that are hard to identify in other systems.

LEARN MORE
CALIBRATION SERVICES



CUSTOM TRANSDUCER DEVELOPMENT

At Brüel & Kjær, we don’t just design, manufacture, and develop transducers. We are in the business of innovation and always have been. Many of our employees are world-renowned experts, frequently speaking at conferences, presenting papers at seminars, and advising on
new standards.

Sometimes a measurement situation requires a solution that cannot be met by existing Brüel & Kjær products. To effectively satisfy the needs of our clients, we have a procedure for efficiently handling requests for customized products.

Minor modifications are handled with ease and at low cost, whereas major or new items requiring substantial engineering, will need technical and economic assessment.
