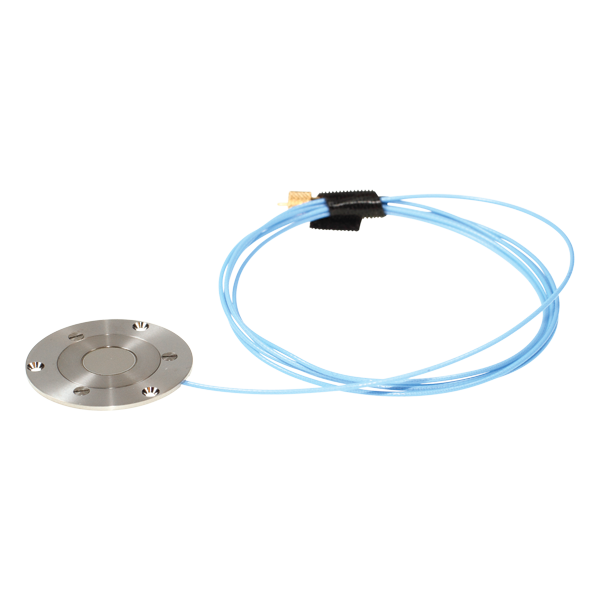

TYPE 4948
Aerospace Surface Microphone
Surface Microphone Type 4948 is designed to be used in aerospace. For example, on airplane surfaces during in-flight testing and is also well suited to wind-tunnel testing, limited spaces, or near to hard reflective surfaces.
견적 요청하기Type 4948 is a 1/2" CCLD surface microphone intended for use on airplane surfaces during in-flight testing. The microphone is also well suited to wind-tunnel testing, limited spaces, or near to hard reflective surfaces.
USE SCENARIOS
- Measurement of sound pressure on surfaces
- Acoustic fatigue testing of airplanes
- Wind-tunnel measurements
- Medium- to high-level measurements
- Measurement in confined spaces
The microphone offers high mounting flexibility and its diaphragm is flush with microphone housing in order to minimize the effect of wind-generated noise on the microphone.
- Capacitance
- pF

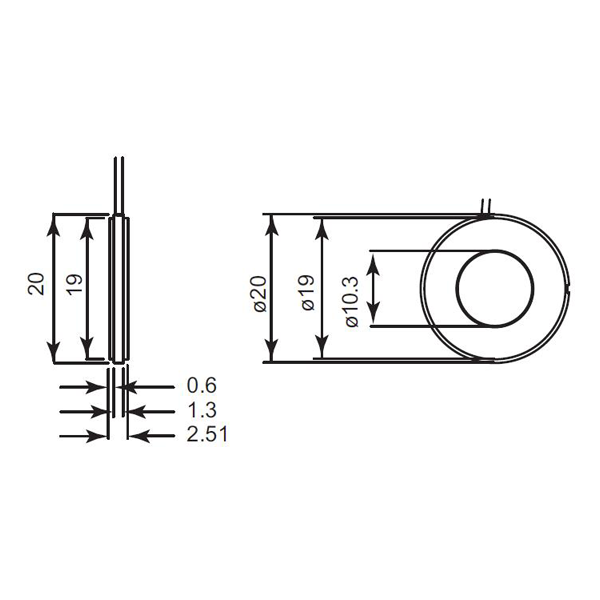

- Diameter
- 1/2
- Dyn. range
- 55 – 160 dB
- Freq. range
- 5 – 20000 Hz
- Inherent noise
- 55 dB A
- Lower limiting frequency -3dB
- 5 Hz
- Optimised
- Surface
- Polarization
- Prepolarized
- Polarization voltages
- V
- Pressure coefficient
- -0.007 dB/kPa
- Sensitivity
- 1.4 mV/Pa
- Temperature coefficient
- 0.0013 dB/ºC
- Temperature range
- -55 – 100 ℃
- Venting
- Front
- Weight
- gram
- Sound field
- Pressure-field
- Input type
- CCLD IEPE
- Microphone type
- Surface
