TYPE 8324-G

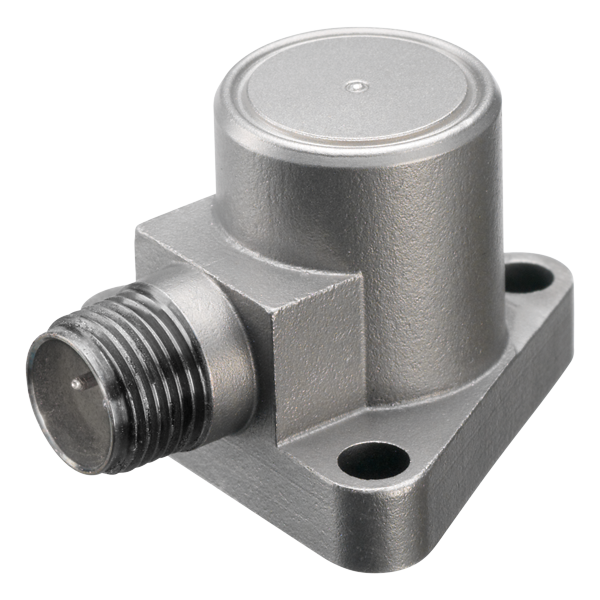

Piezoelectric Accelerometer Types 8324-G And 8324-G-100
Designed for vibration measurements in harsh industrial environments.
견적 요청하기Types 8324-G and 8324-G-001 industrial accelerometer is intended for measurements in harsh environments.
USE SCENARIOS
- Flight test applications
- Measurement in high-temperature environments
- Health usage monitoring systems
- Gas turbines
- Freq. range
- 1 – 9000 Hz
- Temperature
- -196 – 250 ℃
- Weight
- 91 gram
- Sensitivity
- 1 mV/ms^-2
- Residual Noise Level in Spec Freq Range (rms) ±
- 0.4 µg
- Maximum Operational Level (peak)
- 2000 g
- Connector
- BNC
- Mounting
- 3 x M4 bolts
- Clip/Stud/Screw included
- 3 x M4 Allen screws
- Output
- CCLD
- Unigain
- No
- Triaxial
- No
- TEDS
- Yes
- Resonance frequency
- 30 kHz
- Maximum Shock Level (± peak)
- 2000 g
