TYPE 4524-B

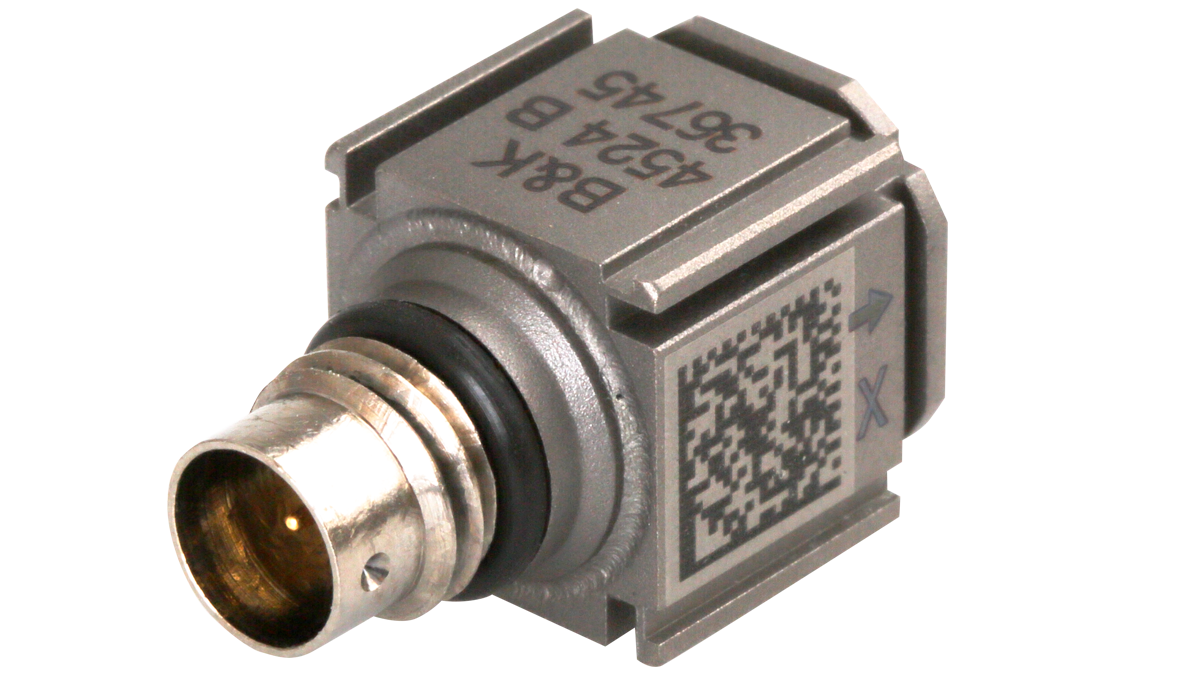

Triaxial CCLD Piezoelectric Accelerometer, TEDS

Designed for structural analysis measurements.

Solicitar oferta
Types 4524 and 4524-B are lightweight triaxial piezoelectric OrthoShear accelerometers, each with three independent outputs for simultaneous measurements in three mutually perpendicular directions. Types 4524 and 4524-B have a 4-pin connector.

USE SCENARIOS

  • Structural analysis measurements
  • Multichannel modal analysis measurements
  • Modal measurements for automotive body and power-train applications

The clip mounting facility combined with the ability to mount the transducer on five of its six surfaces makes mounting on structures very flexible and quick and thus ideal for structural and modal analysis measurements.

The light compact construction is an improved design covered by the OrthoShear patent.

Freq. range
0.25 – 3000 Hz
Temperature
-54 – 100 ℃
Weight
4.4 gram
Sensitivity
10 mV/ms^-2
Residual Noise Level in Spec Freq Range (rms) ±
400 µg
Maximum Operational Level (peak)
50 g
Connector
4-pin
Mounting
Clip Adhesive
Accessory Included
None
Clip/Stud/Screw included
Mounting Clip
Output
CCLD
Unigain
No
Triaxial
Yes
TEDS
Yes
Applications
Modal, Vibration Test
Unit
mV
Resonance frequency
9 kHz
Maximum Shock Level (± peak)
5000 g
