Multifunction acoustic calibrator
Multifunction Acoustic Calibrator enables simulated free-field calibration of microphones, sound level meters and other acoustical instruments in compliance with standards EN/IEC 60942 / ANSI S1.40.Demande de devis

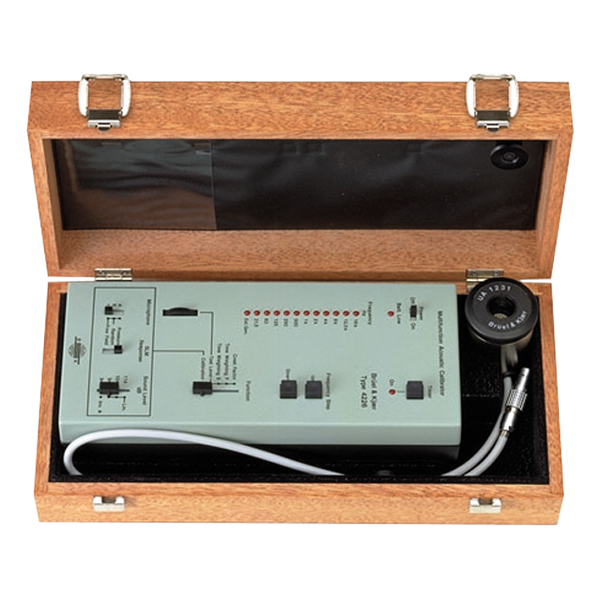

Multifunction Acoustic Calibrator Type 4226 generates accurate and stable sound pressure with a frequency varying from 31.5 Hz to 16 kHz in octave steps, plus a signal at 12.5 kHz.
- Simulated free- and diffuse-field calibration of microphones
- Verification of ½" and ¼" microphone setups and acoustic instruments conforming to IEC 60651 and ANSI S 1.4-1983
- Verification of instruments according to parts of IEC 61672
Using the coupler provided, the test signal can be applied to either ½-inch or ¼-inch microphones, or picked up from an electrical output. For ease of use, Type 4226 can also apply a very accurate inverse A-weighting correction.
An external generator can be connected to Type 4226 if a frequency sweep or semi-automatic test is desired.
- IEC 942 (1988) Class 1
- Calibration pressure
- 94, 104 and 114
- Calibration frequencies
- 31.5 Hz to 16 kHz in octave steps
- Calibration accuracy
- ± 0.2 at 94 dB
