Dynamic Bridge Transducer Front Panels
Designed for use with Kulite Bridge Transducers such as the LQ-080 series and the LQ-125 series used in the aerospace industry for dynamic measurements on aircraft and in wind tunnels.견적 요청하기

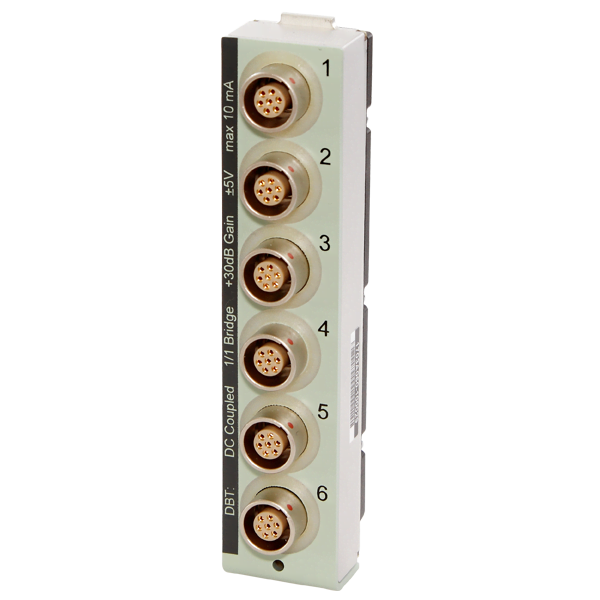

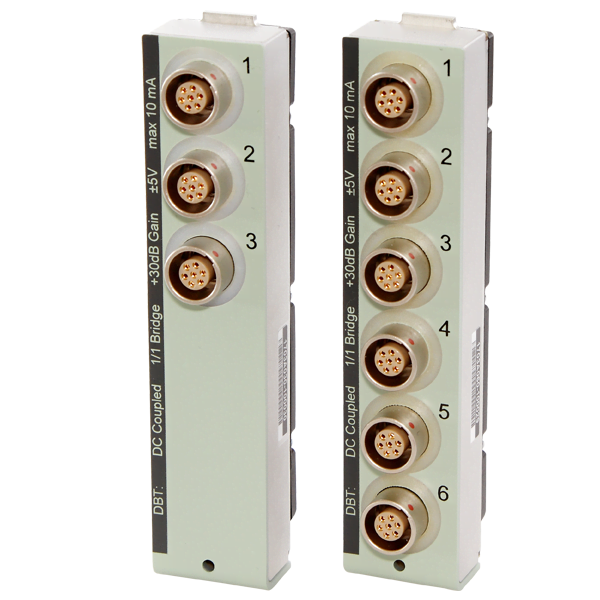

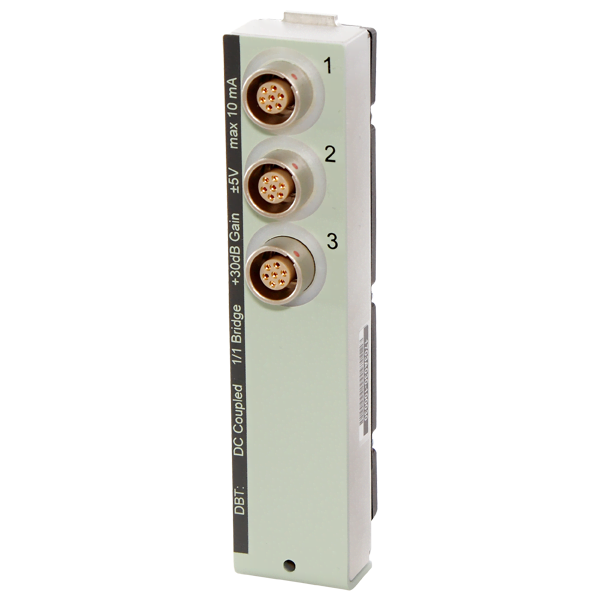

The UA-2114 front panels are specifically designed for use with Kulite Bridge Transducers such as the LQ-080 series and the LQ-125 series used in the aerospace industry for dynamic measurements on aircraft and in wind tunnels.
- Kulite Bridge Transducers

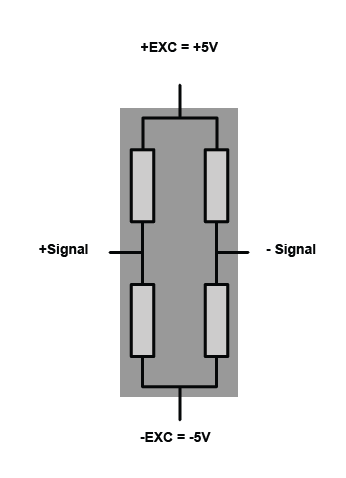

UA-2114 is supplied from ±5 V and deliver ±5 V excitation voltage to the Kulite transducers. This gives the possibility of DC-coupling of the front panel's input amplifier, resulting in good noise performance at low frequencies (typically 8 nV/√Hz).
The lower frequency is set by the high-pass filters of the LAN-XI modules. DC-coupling down to zero is possible, but any DC offset from the transducers must be taken into account. A DC offset greater than about 10 mV will force the Dyn-X input into its upper range resulting in loss of dynamic range.
The gain in the front panel amplifier is 30 dB – optimised for the LAN-XI modules.
UA-2114 is only intended for use with bridge transducers and only with transducers powered from UA-2114 itself.
|Front panels||Compatible LAN-XI modules|
