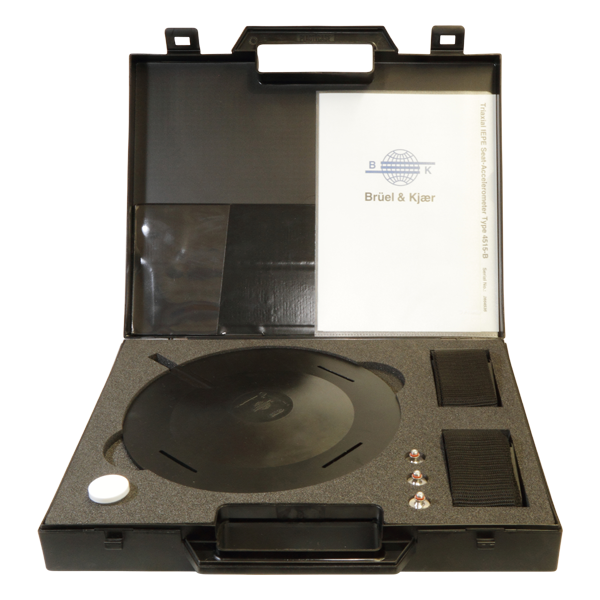

Triaxial deltaTron seat accelerometer - Type 4515-B
TYPE 4515-B
Triaxial CCLD Seat Accelerometer, 100 mV/g
Triaxial CCLD Seat Accelerometer with TEDS, designed for field measurement of human whole-body vibration as well as test and measurement of passenger and work vehicles. Supplied with a 3 M integral cable.
견적 요청하기Accelerometer Type 4515-B is specially designed for the measurement of whole-body vibration. It consists of a triaxial accelerometer housed in a semi-rigid nitrile rubber disc and complies with ISO 7096, ISO 2631 and ISO 10326–1.
The accelerometer can be placed under a seated person, on a vibrating surface with a suitable weight on top, or strapped onto the body. It detects vibration in directions along the body, back-to-front, and side-to-side.
USE SCENARIOS
- Field measurement of human whole-body vibration
- Test and measurement of passenger and work vehicles
- Freq. range
- 0.25 – 900 Hz
- Temperature
- -10 – 70 ℃
- Weight
- 345 gram
- Sensitivity
- 10 mV/ms^-2
- Residual Noise Level in Spec Freq Range (rms) ±
- 200 µg
- Maximum Operational Level (peak)
- 500 g
- Accessory Included
- Integral Cable
- Clip/Stud/Screw included
- None
- Output
- CCLD
- Unigain
- No
- Triaxial
- Yes
- TEDS
- No
- Unit
- mV
- Resonance frequency
- 2.7 kHz
- Maximum Shock Level (± peak)
- 5000 g
