TYPE 8346-C

Piezoelectric Charge Accelerometer

Designed for low-level vibration measurements.

견적 요청하기

Type 8346-C is a piezoelectric DeltaShear® charge accelerometer.

USE SCENARIO

  • Low-level vibration measurement

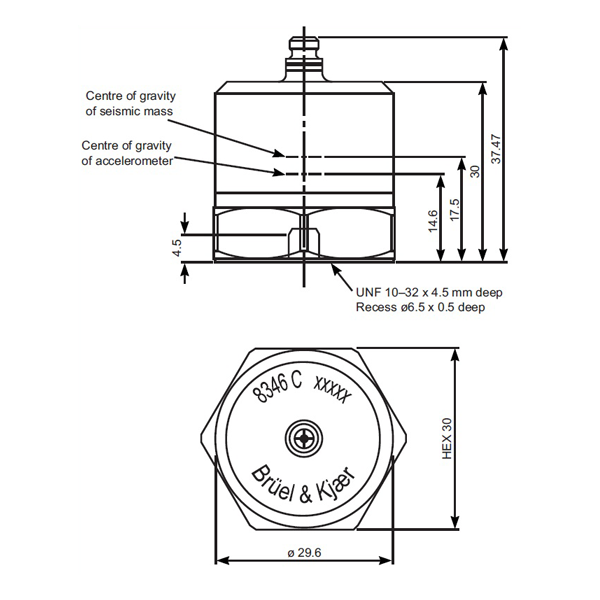

The transducer features a 10-32 UNF output connector on the top, and it can be mounted on the object by means of a 10-32 UNF threaded steel stud.

Freq. range
0.1 – 3000 Hz
Temperature
-50 – 100 ℃
Weight
176 gram
Sensitivity
38 pC/ms^-2
Residual Noise Level in Spec Freq Range (rms) ±
0.1 mg
Maximum Operational Level (peak)
2000 g
Connector
10-32 UNF
Mounting
10-32 UNF
Output
Charge-PE
Unigain
No
Triaxial
No
TEDS
No
Resonance frequency
10 kHz
Maximum Shock Level (± peak)
5000 g
