TYPE 8103

Miniature Hydrophone

Miniature Hydrophone Type 8103 is a small piezoelectric transducer designed for high-frequency laboratory and industrial use. The instrument is particularly useful in the acoustic study of marine animals or for cavitation measurement.

견적 요청하기

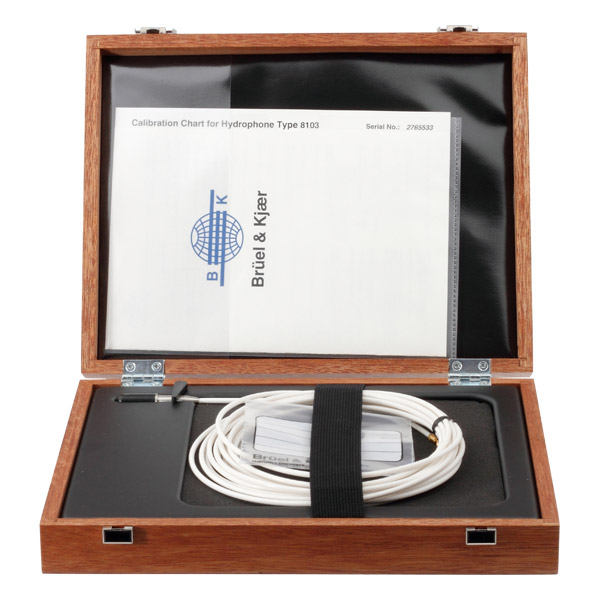

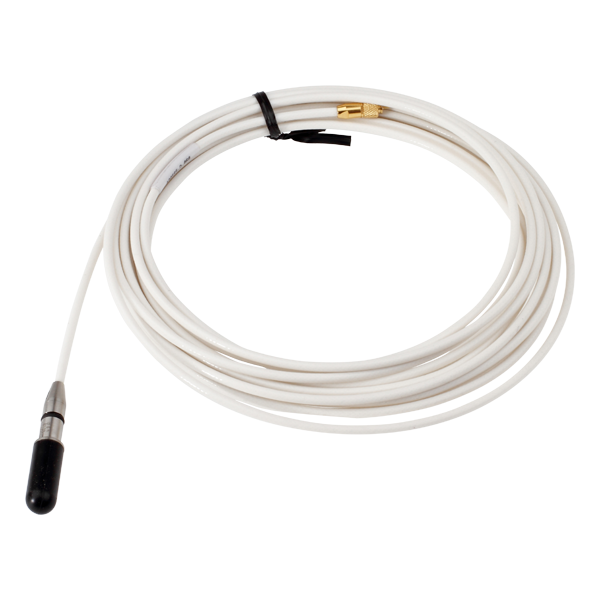

Miniature Hydrophone Type 8103 is designed for high-frequency laboratory and industrial use and is supplied with an integral 6m cable terminated 10-32 unf microdot plug.


  • Calibration reference standards
  • Ultrasonic measurements in liquids
  • Cavitation measurements
  • Laboratory/industrial measurements in liquids and gases
  • As underwater projectors (8103, 8104, and 8105
  • Noise measurements in humid and polluted atmospheres
Miniature hydrophone Type 8103 is a small, high-sensitivity hydrophone for absolute sound measurements over the frequency range 0.1Hz to 180 kHz, with a receiving sensitivity of −211 dB re 1V/μPa. The high sensitivity and good all-round characteristics, make it ideal for laboratory, industrial, and educational use.

The high-frequency response of this hydrophone becomes especially valuable when making acoustic investigations of marine animals, and for measuring pressure-distribution patterns in ultrasonic-cleaning baths.
Voltage sensitivity with cable at 20°
30 uV/Pa ± 8 uV
Charge sensitivity
Capacitance with integral cable
Frequency range re. 250 Hz
0.1Hz to 20 kHz (+1/–1.5 dB) / 0.1Hz to 180 kHz (+3.5/−12.5 dB)
Operating temperature range short-tem continuous
-30 to +80
Max operating static pressure
252 dB = 4 × 10^6 Pa
50 mm (1.97 inch)
Weight including integral cable
170 g (0.37 lb)
Integral cable
6 m waterproof low-noise double-shielded teflon cable with standard miniature coaxial plug
