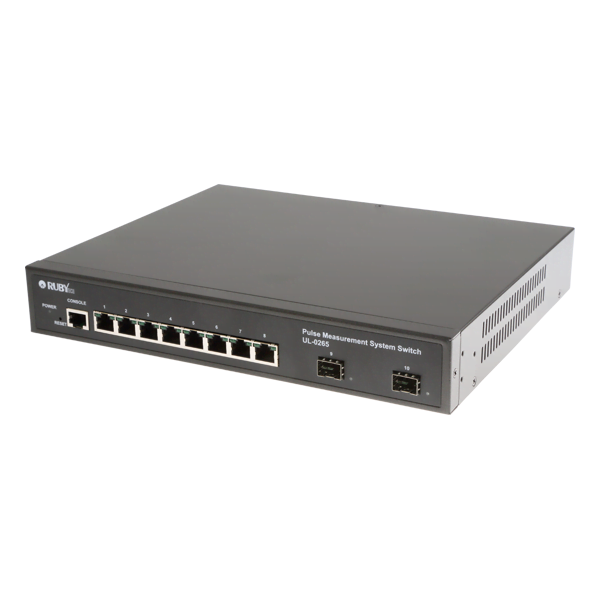

UL-0265

8-port LAN SWITCH (w/PoE and PTPv2)

Eight-port LAN-switch with PoE and PTPv2 support. 10/100/1000Mbps network switch that can power up to 8 LAN-XI modules.

Angebot anfordern

LAN-XI/Pulse Measurement system providing an eight-port 10/100/1000Mbps network switch/LAN-switch with PoE and PTPv2 support. The LAN-Switch can power up to 8 LAN-XI modules.

USE SCENARIOS

  • Data transfer and synchronization of LAN-XI DAQ modules
  • Powering of up to eight LAN-XI DAQ modules, each using a single twisted-pair Ethernet cable
  • Distributed LAN-XI/PULSE Measurement Setups

SPECIFICATIONS

  • Configured specifically for optimum PULSE measurement performance: Preconfigured for plug and play set up
  • Power over Ethernet (PoE; 802.3af) enables the switch to power stand-alone LAN-XI modules
  • Precision Time Protocol (PTPv2; IEEE 1588–2009) synchronizes LAN-XI modules and frames with each other at sample-level accuracy
  • Web-managed switch: Configurable via a browser
  • No bandwidth limitations
