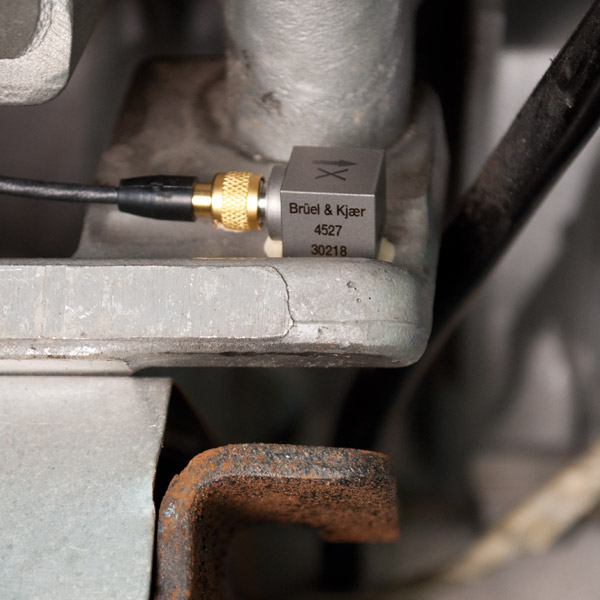

Accelerometer Type 4527 mounted
-

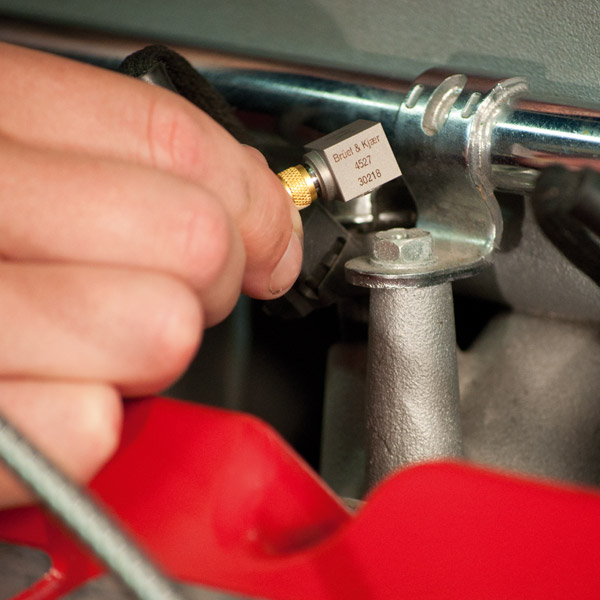

Close-up of accelerometer Type 4527 mounted on engine
TYPE 4527
Triaxial Accelerometer, High Temp, 10 mV/g, Side Connector
High temperature triaxial Accelerometer designed to operate continuously at 180°C (356°F) meeting the toughest environmental requirements. Type 4527 features a hermetic, M3 tapped hole.
견적 요청하기ACCELEROMETER VIDEO - PRODUCTION TOUR
The magic touch of production - its all in the details. See how the high-temperature, multipurpose Triaxial CCLD Accelerometer Type 4527 is made.
Designed to operate continuously at 180°C (356°F) and to meet the toughest environmental requirements. The wide 0.3Hz to 10 kHz frequency range and low weight of Triaxial CCLD Accelerometer Types 4527 and 4527-001 make them equally suitable for use as general purpose accelerometers.
USE SCENARIOS
- Powertrain, engine and exhaust
- Environmental stress screening
- Gas turbine auxiliary equipment
- Multi-purpose measurements
- Modal and on-road testing
- Triaxial measurements in confined spaces
When only a single- or dual-axis measurement is needed, these accelerometers only use the axes that you want - greatly simplifying your analysis.
- Freq. range
- 0.3 – 10000 Hz
- Temperature
- -60 – 180 ℃
- Weight
- 6 gram
- Sensitivity
- 1 mV/ms^-2
- Residual Noise Level in Spec Freq Range (rms) ±
- 900 µg
- Maximum Operational Level (peak)
- 714 g
- Connector
- 1-4 28 UNF
- Mounting
- M3 or Adhesive
- Output
- CCLD
- Unigain
- No
- Triaxial
- Yes
- TEDS
- No
- Applications
- Vibration Test
- Unit
- mV
- Resonance frequency
- 30 kHz
- Maximum Shock Level (± peak)
- 5100 g
