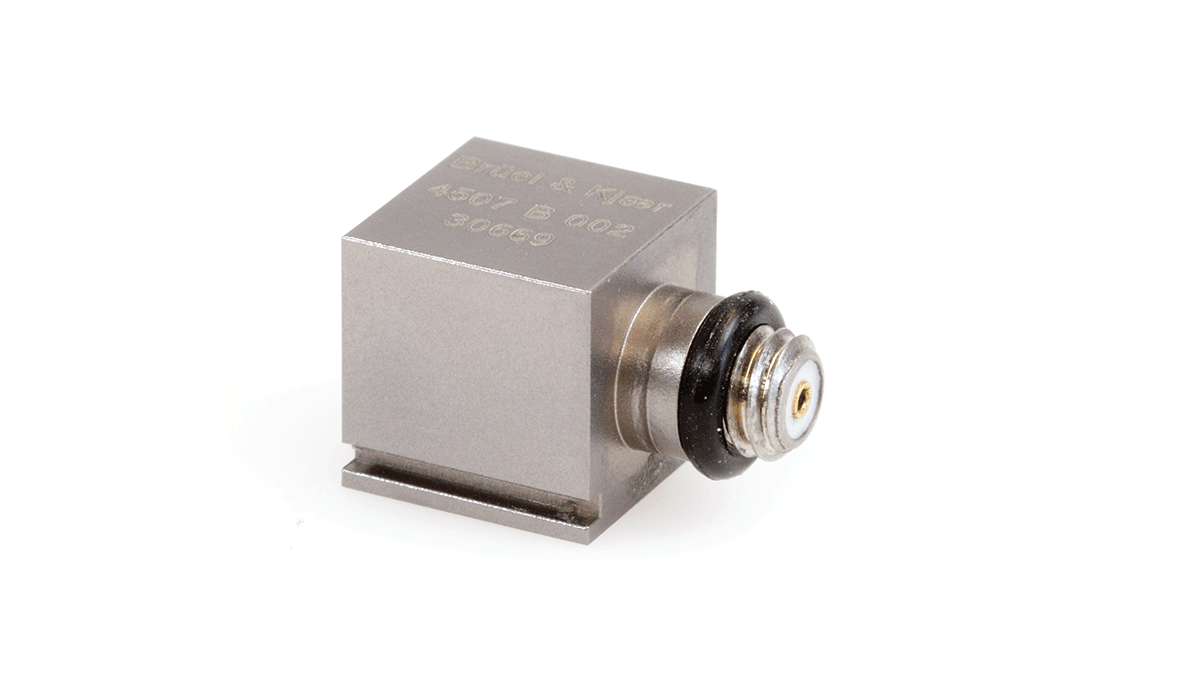

TYPE 4507-B-002
Piezoelectric CCLD Accelerometer, TEDS, 1000 mV/g, Side Connector, 1 Slot, Excl. Cable
Designed for modal analysis measurements.
Angebot anfordernMiniature CCLD Accelerometers Types 4507 and 4508 are specifically designed to withstand the rough environment of the automotive industry. A combination of high sensitivity, low mass and small physical dimensions make them ideal for modal measurements, such as automotive body and power-train measurements, as well as for modal analysis on aircraft, trains and satellites.
USE SCENARIOS
- Modal measurements for automotive body and power-train applications
- Multichannel modal analysis measurements
- Structural analysis measurements
The main difference between the two Types is the position of the coaxial connector which is on the top surface perpendicular to the main axis for Type 4508 (top-mounted connector), and on the side surface parallel to the main axis for Type 4507 (side-mounted connector).
- Freq. range
- 0.4 – 6000 Hz
- Temperature
- -54 – 100 ℃
- Weight
- 4.8 gram
- Sensitivity
- 100 mV/ms^-2
- Residual Noise Level in Spec Freq Range (rms) ±
- 150 µg
- Maximum Operational Level (peak)
- 7 g
- Connector
- 10-32 UNF
- Mounting
- Clip Adhesive
- Accessory Included
- OptionalAO 1419
- Clip/Stud/Screw included
- Clip
- Output
- CCLD
- Unigain
- No
- Triaxial
- No
- TEDS
- Yes
- Applications
- Modal
- Unit
- mV
- Resonance frequency
- 18 kHz
- Maximum Shock Level (± peak)
- 5000 g
