TYPE 4384

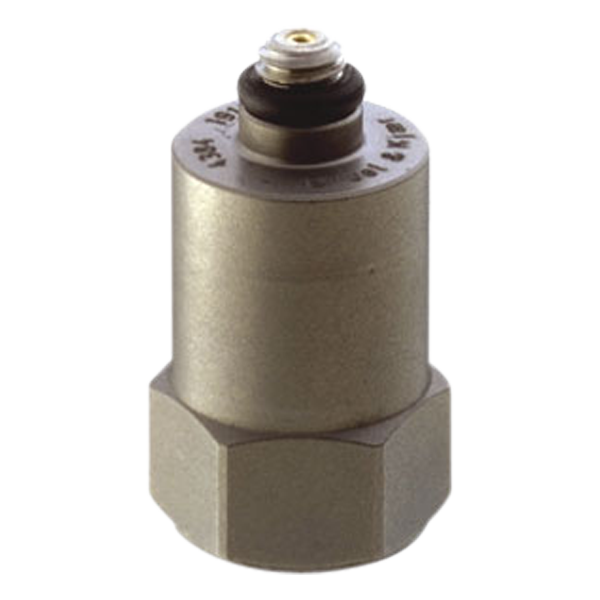

Piezoelectric Charge Accelerometer with Top Connector
Type 4384 piezoelectric charge accelerometer is designed for general purpose vibration testing and analysis and general-purpose high-frequency measurements. Supplied with cable included.
Angebot anfordernType 4384 is a piezoelectric, DeltaShear®, Unigain® accelerometer with top connector. Type 4384 features 10 – 32 UNF receptacle for output connection and can be mounted on the object by means of a 10 – 32 UNF threaded steel stud.
USE SCENARIOS
- General purpose
- High sensitivity
- High-frequency measurement
- Vibration testing and analysis
CHARACTERISTICS
This piezoelectric accelerometer may be treated as a charge source. Its sensitivity is expressed in terms of charge per unit acceleration (pC/g).
The DeltaShear design involves three piezoelectric elements and three masses arranged in a triangular configuration around a triangular centre post. The ring prestresses the piezoelectric elements to give a high degree of linearity. The charge is collected between the housing and the clamping ring. The piezoelectric element used is a PZ 23 lead zirconate titanate element. The housing material is titanium.
CALIBRATION
The sensitivity given in the calibration chart has been measured at 159.2 Hz and an acceleration of 10 g. For 99.9% confidence level, the accuracy of the factory calibration is ± 2%.
- Freq. range
- 0.1 – 12600 Hz
- Temperature
- -74 – 250 ℃
- Weight
- 11 gram
- Sensitivity
- 1 pC/ms^-2
- Residual Noise Level in Spec Freq Range (rms) ±
- 0.24 mg
- Maximum Operational Level (peak)
- 6000 g
- Connector
- 10-32 UNF
- Mounting
- Stud
- Accessory Included
- AO 0038
- Clip/Stud/Screw included
- YQ 2960
- Output
- Charge-PE
- Unigain
- Yes
- Triaxial
- No
- TEDS
- No
- Applications
- General Purpose
- Unit
- pC
- Resonance frequency
- 42 kHz
- Maximum Shock Level (± peak)
- 20000 g
